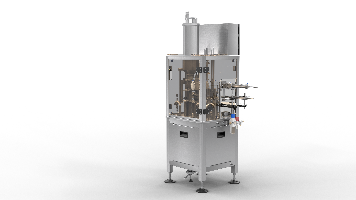

PASTPACK R Rotary Filling and Sealing Machine
Package type
PASTPACK R is an automatic rotary filling and sealing machine designed for dosing liquid and pasty products into plastic cups and containers with subsequent foil sealing and optional plastic cap placing.
The machine is suitable for dairy products, sour cream, cream, yogurt, cottage cheese, curd products, cream cheese, sauces, mayonnaise, mustard, ketchup, tomato paste, salads, caviar, pâté, honey, jam, chocolate paste, snacks, nuts, chips, croutons, crackers and selected non-food liquid or paste products.
PASTPACK R is a compact rotary filling machine for manufacturers that need stable filling, foil sealing and flexible configuration for different plastic cups and containers. In the servo version, the rotary table is driven by a servo motor, providing higher performance, improved movement dynamics and better durability of the mechanism.
The machine can process liquid and pasty products, including products with soft, easily deformable inclusions up to 10 mm. The standard configuration includes a volumetric piston filler, while additional dosing systems and nozzles can be selected according to the product type.

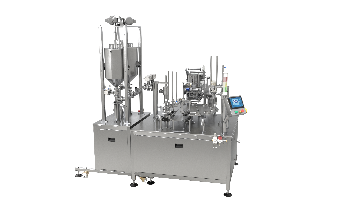

PASTPACK R can work with round plastic cups and rectangular containers. Depending on the configuration, the machine can be equipped with a plastic cap placing unit, discharge conveyor, UV treatment unit, supply tank heating, viscous product filling system, additional filler for layered products and roll-fed film sealing with contour cutting.
PASTPACK R can be used as a standalone rotary filling and sealing machine or integrated with dosing systems, pumping stations, discharge conveyors, labeling, date coding and downstream packaging equipment for dairy, food and non-food manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematical speed, max, cycles/min | 40 Servo |
| Round cup diameter, max, mm | 101 / 130 Servo |
| Rectangular container size, max, mm | 126×90 / 142×92 Servo |
| Cup / container height, max, mm | 120; 200 upon request |
| Rotary table drive unit | Asynchronous / Servo |
| Filler as standard equipment | Volumetric piston filler |
| Package type | Plastic cups and containers with foil sealing |
| Power supply | 220 V, 1-Ph, 50 Hz |
| Power consumption, kW | 2.2 / 3.5 Servo |
| Air pressure, MPa | 0.6 |
| Air consumption, l/min | 350 |
| Machine length, mm | 910 |
| Machine width, mm | 880 |
| Machine height, mm | 1950 |
| Machine weight, kg | 400 |
| Structure material | Anodized aluminum alloy; stainless steel is optional |
PASTPACK R can be configured for different cup and container formats, product viscosities, sealing methods and production requirements.
The servo-driven version allows speed adjustment from the control panel, improves machine dynamics and enables installation of additional options such as roll-fed film sealing and PLC-based dose regulation.
Standard accessories:
- Container feeding unit
- Liquid volumetric piston filler
- Foil placing unit
- Foil sealing unit
- Date printing device
- Finished product discharge unit
- Electric cabinet
- Control board
- Rotary table
Optional equipment:
- Plastic cap placing unit
- Discharge conveyor, plate-chain or belt type
- UV treatment unit for antibacterial treatment of cups
- Filling system for viscous and difficult-to-flow products
- Changeover set for another cup or container size
- Set of nozzles for different product types
- Servo-driven rotary table
- Additional filler for layered products
- Supply tank heating
- Roll-fed film sealing unit with contour cutting
- Inert gas injection system
Servo-driven version:
- Higher performance
- Improved movement dynamics
- Better durability of the rotary mechanism
- Adjustable rotation speed to reduce splashing during liquid product filling
- Working process monitoring with output to the control panel
- Possibility to install additional machine options
Advantages:
- High performance with compact machine dimensions
- Suitable for plastic cups and rectangular containers
- Filling of liquid and pasty products with soft inclusions up to 10 mm
- Foil sealing and optional plastic cap placing
- Servo-driven version for higher performance and better motion control
- Compatibility with different dosing systems and additional fillers
- Corrosion-resistant materials suitable for food and dairy production
- Components from leading automation and pneumatic manufacturers
- Network-level control system architecture for easier maintenance and diagnostics
- Color touch screen interface with multilingual operation
- Milk and drinking dairy products
- Yogurt and fermented dairy products
- Sour cream and cream
- Cottage cheese, curd products and cream cheese
- Butter, spreads and edible oils
- Sauces, mayonnaise, mustard and ketchup
- Tomato paste and vegetable pastes
- Salads with soft inclusions up to 15 mm
- Seaweed, caviar, pâté and preserves
- Honey, marmalade, jam and chocolate paste
- Small-piece snacks, nuts, chips, croutons and crackers
- Liquid soap and washing fluids
- Household chemical liquids
- Other liquid and pasty products suitable for plastic cup and container filling
