Tray Sealing Machines for Vacuum and MAP Packaging
SIGITASPAK supplies tray sealing machines for hermetic sealing, vacuum and MAP (modified atmosphere packaging) of food in ready-made plastic trays and containers. Tray sealers are used for ready meals, meat, poultry, fish and seafood, cheese, salads, dates and sandwiches — wherever shelf life and pack appearance matter.
Fast selection logic for a tray sealer:
- Mode: sealing only, vacuum, or MAP with inert gas.
- Tray: size, depth and material; one or several formats on one machine.
- Output: manual loading up to 7 cycles/min or automatic sealing up to 16 cycles/min with up to 4 rows.
- Line scope: product dosing, coding, labeling, checkweighing, case packing.
1) Sealing, vacuum or MAP?
Hermetic sealing
Vacuum
MAP
The gas mixture and parameters are validated for each product and cold chain.
2) Tray sealing machines

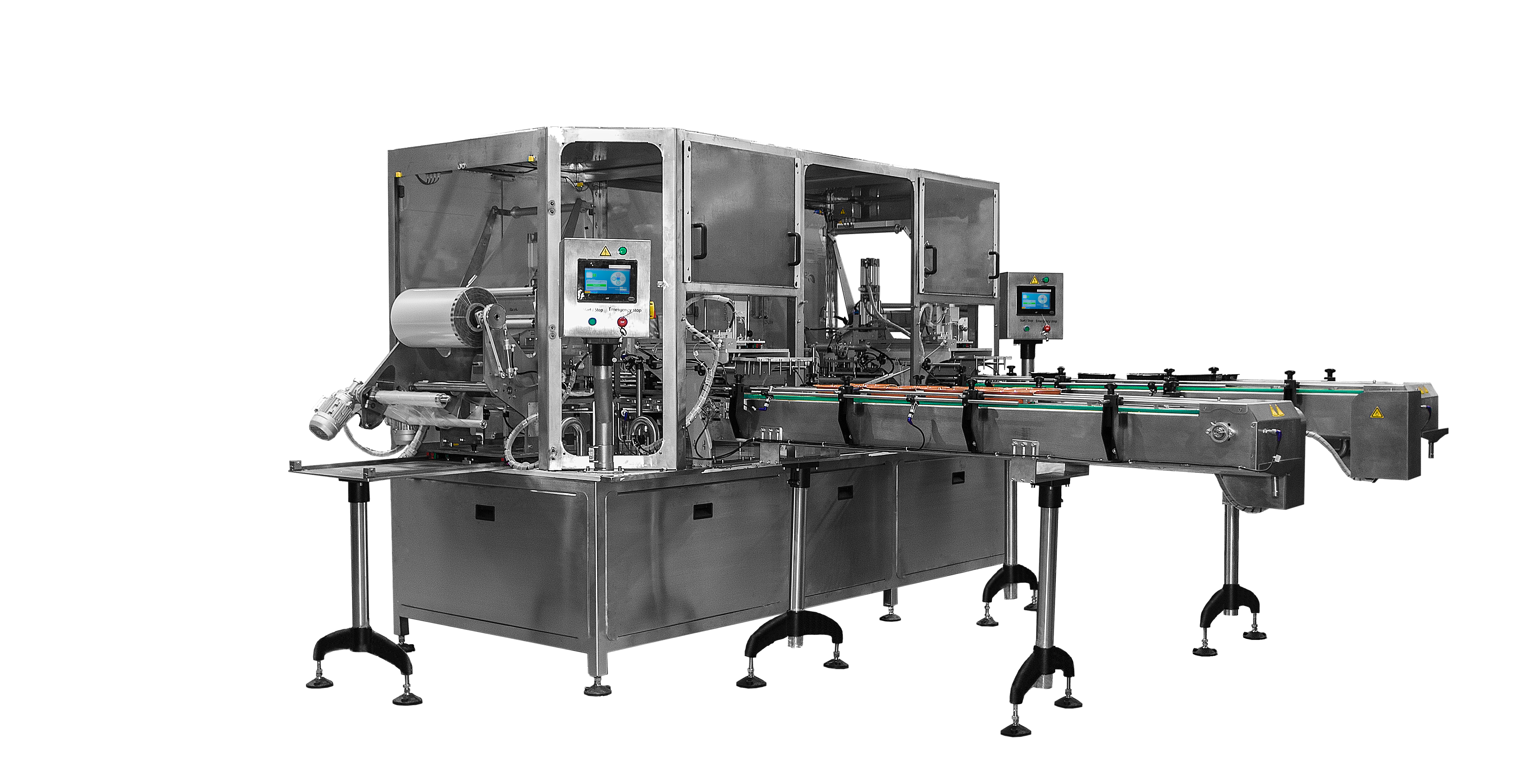

TRAYSEALER — automatic tray sealing machine
- Sealing only, vacuum sealing or MAP sealing
- Up to 16 cycles/min kinematic speed, about 10 cycles/min in operation; up to 4 rows at once
- Tray size up to 500 × 270 mm, height up to 135 mm
- Film cut along the tray contour
Semi-automatic tray sealer
- For small producers, central kitchens and new products
- Up to 7 cycles per minute; manual tray loading and unloading
- Sealing, vacuum or MAP; options: UV film treatment, tray presence sensors, format changeover set
PASTPACK 2R2V — rotary sealer for cups and containers
- Two enlarged rotors for different containers or products in parallel
- Up to four packages per cycle in two-row configuration; buckets up to 3 L
- Sealing, MAP or vacuum; options: UV treatment, HEPA filter unit, overcap placing
3) Tray sealer or thermoformer?
| Tray sealer | Thermoformer | |
|---|---|---|
| Package | Ready-made trays and containers | Pack formed from roll film on the machine |
| Best for | Several tray formats, retail-ready trays, ready meals | One format in large volumes, cheese and meat in vacuum |
| Modes | Sealing, vacuum, MAP | Sealing, vacuum, MAP |
| Packaging cost | Higher — trays are bought | Lower — trays formed from film |
4) Applications
- Ready meals and central kitchens — hot and chilled meals in trays with MAP.
- Meat, poultry, fish and seafood — vacuum or MAP for longer shelf life.
- Cheese and dairy — portioned cheese in trays, see cheese packaging machines.
- Dates — trays with vacuum or MAP, see date packaging machines.
- Sandwiches — triangular trays, see tray sealer for sandwich packaging.
5) What to include in your request
- Product: type, temperature at sealing, target shelf life.
- Tray: dimensions, depth, material; samples or drawings.
- Mode: sealing, vacuum or MAP.
- Output: packs per minute or per shift; manual or automatic loading.
- Line scope: dosing, coding, labeling, checkweighing, case packing.
FAQ
What is a MAP packaging machine?
A machine that replaces the air in the pack with a protective gas mixture before sealing. Our tray sealers and thermoformers work in MAP mode with an inert gas injection system.
Can one tray sealer work with different tray sizes?
Yes. Tray formats are changed with format tooling; the semi-automatic model has an optional format changeover set.
Do you supply tray sealers to Saudi Arabia, Oman and other GCC countries?
Yes. We supply equipment to the UAE, GCC countries, the Middle East and Africa from our Dubai office.
Do you provide installation and service?
Yes. Our service engineers in Dubai carry out installation, commissioning, maintenance and repair, and we keep spare parts for supplied equipment.
