PITPACK M1 Large-Dose Liquid Packaging Machine
Products

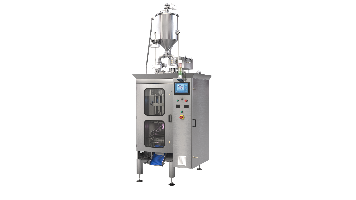

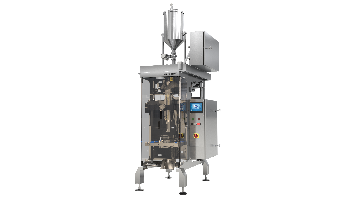

PITPACK M1 is a vertical form-fill-seal packaging machine designed for large-dose packaging of liquid, viscous and pasty products into heat-sealable bags formed from roll-fed film.
The machine is suitable for condensed milk, water, mayonnaise, ketchup, mustard, sour cream, cream, jam, sauces, liquid detergents and other food or non-food liquid products that require large flexible packaging formats.
The key feature of PITPACK M1 is packaging of large product doses up to 25 liters. The machine can produce wide heat-sealed bags up to 500 mm and can be equipped with dosing systems for liquid, viscous or bulk products depending on the production task.
PITPACK M1 forms a large-format package from roll-fed film, doses the product, seals the longitudinal and transverse seams and cuts the finished bag. The four-side sealing principle helps produce large, stable packages suitable for transportation, storage and industrial supply.
The machine can work with polyethylene, polypropylene, laminated films, barrier films and frost-resistant films. It can be configured with liquid fillers, volumetric dosing systems or other dosing equipment depending on product consistency and target dose.
PITPACK M1 can be used as a standalone large-dose packaging machine or integrated with product feeding systems, dosing equipment, discharge conveyors, date coding and downstream packaging equipment for dairy, food, household chemical and non-food manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematical speed, max, cycles/min | 20 |
| Dose volume, min, l | 3 |
| Dose volume, max, l | 25 |
| Bag width, min, mm | 250 |
| Bag width, max, mm | 500 |
| Bag length, max, mm | 500 |
| Film type | Polyethylene, polypropylene, laminates, barrier films and frost-resistant films |
| Film thickness, mcr | 60–100 |
| Film reel width, max, mm | 500 |
| Film reel diameter, max, mm | 500 |
| Film reel weight, max, kg | 50 |
| Film unwinding drive unit | Asynchronous motor-reducer |
| Film pulling drive unit | Asynchronous motor-reducer |
| Longitudinal seal drive unit | Pneumatic cylinder |
| Transverse seal drive unit | Pneumatic cylinder |
| Heating type | Constant heat |
| Filler as standard equipment | No filler |
| Power supply | 380 V, 3-Ph, 50 Hz |
| Power consumption, kW | 7 |
| Air pressure, MPa | 0.6 |
| Air consumption, l/min | 625 |
| Machine length, mm | 2500 |
| Machine width, mm | 1500 |
| Machine height, mm | 1900 |
| Machine weight, kg | 800 |
PITPACK M1 can be configured for large-dose packaging of liquid, viscous, pasty or bulk products in wide heat-sealable bags.
The machine is suitable for manufacturers that need flexible large-format packaging for products such as condensed milk, sauces, mayonnaise, ketchup, mustard, water, liquid detergents and similar products.
Standard accessories:
- Bag forming unit
- Film pulling unit
- Longitudinal sealing unit
- Transverse sealing unit
- Control system adapted for operation with different dosing systems
- Photo mark sensing unit
- Film stopping by photo mark system
- Automatic film centering device
- Bag length sensor
- Film stabilization system
- Thermal printer for date and batch marking
Optional equipment:
- Liquid dosing system for food and non-food liquid products
- Volumetric dosing system for viscous and pasty products
- Cliche / ink printer
- Inert gas injection system
- Impulse sealing unit
- Dust extraction system when working with bulk products
- Static electricity removal system
- Bag puncturing device for excess air removal
- Platform for multihead weighing system
- Discharge conveyors and downstream packaging integration
Advantages:
- Large-dose packaging up to 25 liters
- Suitable for liquid, viscous, pasty and selected bulk products
- Wide package format up to 500 mm
- Four-side sealing for large stable packages
- Compatible with different dosing systems
- Operation with printed film by photo mark
- Film stabilization system for accurate package forming
- Optional excess air removal by bag puncturing device
- Suitable for dairy, food, household chemical and non-food applications
- Integration with dosing, conveying, coding and downstream packaging equipment
- Condensed milk
- Water
- Mayonnaise
- Ketchup
- Mustard
- Sour cream
- Cream
- Jam and liquid sweet products
- Sauces and viscous food products
- Liquid detergents
- Washing fluids
- Household chemical liquids
- Other liquid, viscous and pasty products suitable for large heat-sealable bags
