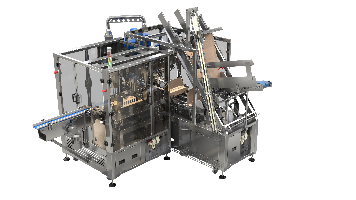

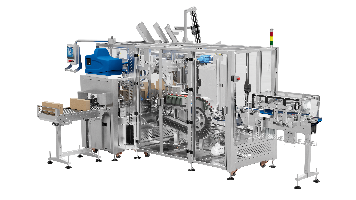

SPM-WRAPAROUND-15 Wraparound Case Packer for Pure-Pak Cartons
SPM-WRAPAROUND-15 for Pure-Pak Cartons is an automatic wraparound case packer designed for group packaging of Pure-Pak and gable top cartons into compact cardboard wraparound cases and retail-ready showboxes.
The machine is suitable for carton packages used for milk, dairy products, juices, beverages and other liquid food products packed in Pure-Pak or similar gable top packaging formats.
Wraparound technology forms the cardboard case directly around the grouped carton block. This helps reduce board consumption, improve transport stability and create compact packaging suitable for logistics, warehouse handling and retail display.
During operation, Pure-Pak cartons are fed to the grouping area, arranged into a stable product block and transferred to the case forming zone. A flat cardboard blank is then wrapped around the product group to form a finished wraparound case.
The machine is designed for automatic end-of-line packaging and can be adapted to different carton sizes, grouping patterns and cardboard case formats according to the customer’s production requirements.
SPM-WRAPAROUND-15 for Pure-Pak Cartons can be integrated with SIGITASPAK filling lines, conveyors, product grouping systems, checkweighers, labeling equipment, palletizing systems and complete end-of-line packaging solutions for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematic speed, max | 15 boxes/min |
| Box type | Wraparound |
| Packaging format | Pure-Pak / gable top cartons |
| Finished package | Cardboard wraparound case / showbox |
| Operation mode | Automatic |
| Power supply | 380 V, 50 Hz |
| Installed power | 7 kW |
| Air pressure | 0.6 MPa |
| Compressed air consumption | 200 l/min |
| Machine length | 4600 mm |
| Machine width | 2100 mm |
| Machine height | 2500 mm |
| Machine weight | 1000 kg |
Advantages
- Automatic wraparound case packer for Pure-Pak and gable top cartons
- Designed for compact cardboard wraparound cases and showboxes
- Suitable for milk, dairy products, juices and beverage cartons
- Output up to 15 boxes/min
- Forms the cardboard case around a grouped carton block
- Reduced board consumption compared with standard corrugated cases
- Stable transport packaging for liquid food cartons
- Retail-ready showbox format for product display
- Compact design for integration into existing filling lines
- Modular configuration with adaptation to the required carton format
- Automatic operation with reduced operator involvement
- Improved end-of-line packaging, logistics and warehouse efficiency
Standard accessories
- Feeding plate conveyor
- Product grouping and transfer unit
- Wraparound case forming unit
- Case fixing and forming unit
- Supporting frame and safety guarding
- Control system and operator panel
Optional equipment
- Automatic product feeding from upstream filling lines
- Additional grouping modules for different carton sizes
- Changeover tooling for new cardboard case formats
- Synchronization with milk, juice and beverage filling lines
- Integration with checkweighers and metal detectors
- Integration with labeling and marking systems
- Integration with palletizing and complete end-of-line systems
- Custom configuration according to customer requirements
- Other options on request
- Pure-Pak cartons
- Gable top cartons
- Cartons for milk and dairy products
- Cartons for juices and beverages
- Cartons for liquid food products
- Grouped carton blocks
- Retail-ready carton groups
- Wraparound cardboard cases
- Showboxes for retail display
- Transport cardboard cases for gable top packaging
- Other carton packages of similar geometry and format
