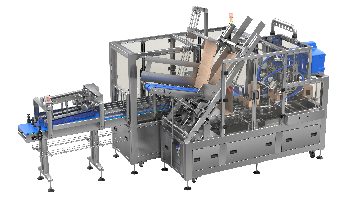

SPM-WRAPAROUND-15 Wraparound Case Packer for Doypack Bags
SPM-WRAPAROUND-15 for Doypack Bags is an automatic wraparound case packer designed for group packaging of doypack bags into compact cardboard wraparound cases and retail-ready showboxes.
The machine is suitable for stand-up pouches, doypack bags with or without spouts, and flexible packages of similar geometry that can be grouped into stable product blocks before secondary packaging.
Wraparound technology forms the cardboard case directly around the grouped doypack block. This helps reduce board consumption, improve transport stability and create compact packaging suitable for logistics, storage and retail display.
During the packaging process, doypack bags are fed to the grouping area, arranged into a stable block and transferred to the case forming zone. A flat cardboard blank is then folded around the product group to form the finished wraparound case.
The machine is designed for automatic end-of-line packaging and can be adapted to different pouch sizes, grouping patterns and cardboard case formats according to the customer’s production requirements.
SPM-WRAPAROUND-15 for Doypack Bags can be integrated with SIGITASPAK doypack filling machines, conveyors, grouping systems, checkweighers, labeling equipment, palletizing systems and complete end-of-line packaging lines for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematic speed, max | 15 boxes/min |
| Box type | Wraparound |
| Box length | 170–400 mm |
| Box width | 110–250 mm |
| Box height | 65–300 mm |
| Power supply | 380 V, 50 Hz |
| Installed power | 7 kW |
| Air pressure | 0.6 MPa |
| Compressed air consumption | 200 l/min |
Advantages
- Automatic wraparound case packer for doypack bags
- Designed for compact cardboard wraparound cases and showboxes
- Suitable for doypack bags with or without spouts
- Suitable for stand-up pouches and similar flexible packages
- Output up to 15 boxes/min
- Forms the cardboard case around a grouped product block
- Reduced board consumption compared with standard corrugated cases
- Stable transport packaging for flexible pouches
- Retail-ready packaging format for product display
- Adaptation to different bag sizes and grouping patterns
- Compact design for integration into automatic packaging lines
- Suitable for continuous industrial operation
Standard accessories
- Feeding plate conveyor
- Product grouping conveyor for forming product blocks
- Product transfer unit
- Wraparound case forming unit
- Case compression and fixing unit
- Supporting frame and safety guarding
- Control system and operator panel
Optional equipment
- Automatic product feeding from upstream doypack filling lines
- Additional grouping modules for different pouch sizes
- Changeover tooling for new cardboard case formats
- Integration with checkweighers and metal detectors
- Integration with labeling and marking systems
- Integration with palletizing and end-of-line automation
- Custom configuration according to customer requirements
- Other options on request
- Doypack bags
- Doypack bags with spouts
- Doypack bags without spouts
- Stand-up pouches
- Flexible pouches of similar geometry
- Pouches for baby food
- Pouches for liquid and paste products
- Grouped pouch blocks
- Retail-ready grouped pouches
- Wraparound cardboard cases
- Showboxes for retail display
- Transport cardboard cases for pouches
