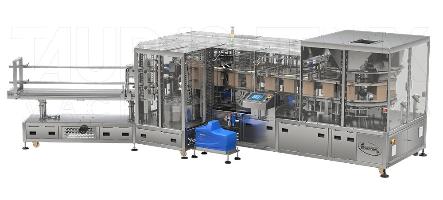

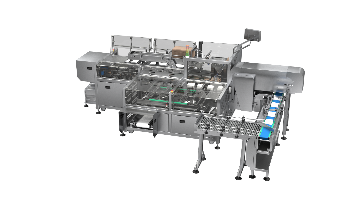

SGP-60V Horizontal Sleeve-Type Case Packer
SGP-60V Horizontal Sleeve-Type Case Packer is an automatic cartoner-case packer designed for group packaging of products into pre-glued three-flap carton cases of the sleeve type.
The machine loads products into the carton in a horizontal position and is suitable for single products, primary packages and grouped products that require accurate orientation inside the cardboard case.
Sleeve-type carton packaging is suitable when the product must be loaded horizontally into a compact three-flap cardboard case. The finished case can be closed with hot glue or by mechanical flap folding, depending on the required packaging configuration.
During operation, products are delivered to the loading system by conveyor or manual feeding, arranged according to the required format and pushed into the pre-formed carton case. After loading, the machine closes the case by flap folding or hot-melt glue sealing.
SGP-60V can be adapted to different product formats and carton sizes. The box magazine allows fast changeover to another carton format by smooth adjustment within the specified range, which makes the machine suitable for multi-format production.
The machine can be integrated into SIGITASPAK end-of-line systems with feeding conveyors, product sorting modules, marking systems, labeling equipment, checkweighers, carton handling systems and downstream packaging equipment for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematic output, max | 60 cases/min |
| Loading element | Feeding conveyor or manual loading |
| Loading type | Horizontal |
| Product block size | 40 × 90 × 90 mm |
| Carton case size | 100 × 140 × 170 mm |
| Power supply | 380 V, 3 ph, 50 Hz |
| Installed power | 1.8 kW |
| Power consumption | up to 4 kW |
| Compressed air consumption | 130 l/min |
| Machine length | 2900 mm |
| Machine width | 800 mm |
| Machine height | 1600 mm |
| Machine weight | 980 kg |
Advantages
- Automatic horizontal sleeve-type case packer
- Designed for pre-glued three-flap carton cases
- Horizontal product loading into the carton
- Output up to 60 packs/min
- Suitable for single products and products in primary packaging
- Accurate product orientation inside the case
- Two case closure options: hot glue sealing or mechanical flap folding
- Fast changeover to another carton format within the specified range
- Control by one operator
- Low noise level during operation
- Safe design with easy access for maintenance and adjustment
- Suitable for integration into automatic end-of-line packaging systems
Standard accessories
- Product presence checking system
- Separate unloading system for rejected or incorrectly positioned products
- Product loading system for horizontal insertion into the carton
- Magazine for folded carton cases
- Adjustable magazine for fast changeover to another carton format
- Box or product conveyor
- Case closing unit
- Control system and operator panel
- Safety guarding and supporting frame
- Remote diagnostics
Optional equipment
- Box inserts: pre-folded insert, flat insert or insert from reel
- Laser or ink-jet marking system for carton cases
- Carton labeling system
- Hot glue sealing system
- Mechanical flap folding system
- LS, Siemens or Allen-Bradley control system configuration
- Duplex version for simultaneous filling and closing of two boxes per cycle
- Wi-Fi modem for control and service from a tablet
- Connection to a computer via local network
- Custom configuration according to customer requirements
- Plastic jars for cosmetics
- Chocolate bars in primary packaging
- Confectionery products
- Desserts
- Cakes
- Pressed popcorn products
- Oatmeal and dry mixes in pillow bags
- Pillow bags
- Cans and jars
- Single products loaded horizontally
- Products in primary packaging
- Pre-glued three-flap sleeve-type carton cases
