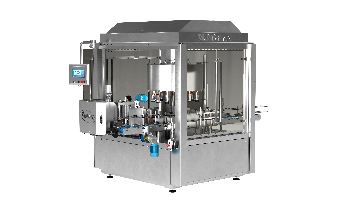

Sleeve Labeling Machine for PET Bottles
SLEEVE LABELING MACHINE is an automatic labeling machine designed for applying heat-shrink sleeve labels to PET bottles and containers of cylindrical or complex geometric shape.
The machine is suitable for PET bottles used for water, milk, yogurt, dairy drinks, juices, beverages and other food or non-food products where full-body shrink sleeve labeling is required.
The key advantage of sleeve labeling is the ability to fit the label tightly around containers of complex shape. When heated in the steam tunnel, the sleeve label shrinks around the bottle and follows its geometry.
The machine performs bottle transport and positioning, sleeve unwinding, sleeve pulling to the required label length, label cutting, label application onto the bottle, vertical label centering and heat shrinking in the steam tunnel.
The steam tunnel provides uniform heating of the sleeve label surface. Steam temperature can be adjusted depending on label size, film thickness and bottle geometry, which helps achieve accurate shrinkage and a clean final appearance.
SLEEVE LABELING MACHINE can be used as a standalone labeling unit or integrated with bottle filling lines, conveyors, capping machines, bottle drying systems, date coding, inspection equipment and downstream packaging systems for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Capacity, bottles/hour | Up to 3000 |
| Container type | PET bottles and containers of cylindrical or complex shape |
| Bottle height, mm | 60–300 |
| Bottle diameter, mm | 48–92 |
| Label type | Heat-shrink sleeve label |
| Label height, mm | 40–256 |
| Label diameter, mm | 50–95 |
| Label material | PVC / PET film |
| Label film thickness, mm | 0.04–0.07 |
| Power supply | 380 V, 3-Ph, 50 Hz |
| Power consumption, kW | 2.2 |
| Machine length, mm | 4650 |
| Machine width, mm | 770 |
| Machine height, mm | 2100 |
| Machine weight, kg | 600 |
| Shrink tunnel type | Steam tunnel |
| Steam temperature range | 110–140 °C |
SLEEVE LABELING MACHINE can be configured for automatic application of heat-shrink sleeve labels to PET bottles and other compatible bottle formats.
Sleeve labels are especially useful when the bottle has a complex shape or when the manufacturer needs a large decorative surface for branding, product information and shelf visibility.
Standard accessories:
- Belt conveyor
- Sleeve unwinding unit with reel holder
- Labeling unit with sleeve pulling, cutting and application mechanisms
- Replaceable mandrel for sleeve label application
- Phasing conveyor / bottle separation mechanism
- Label centering device
- Steam heat-shrink tunnel
- Electrical cabinet and control system
Optional equipment:
- Changeover set for another sleeve label size
- Changeover set for another bottle size or type
- Bottle surface drying system
- Integration with bottle filling and capping lines
- Integration with conveyors and downstream packaging equipment
- Date coding or batch marking equipment
- Inspection or reject system integration
Advantages:
- Automatic application of heat-shrink sleeve labels
- Suitable for PET bottles and containers of complex shape
- Full-body label coverage for strong product presentation
- Accurate sleeve cutting, application and centering
- Steam tunnel for uniform sleeve shrinkage
- Adjustable temperature depending on label size, film thickness and bottle shape
- Suitable for beverage, dairy, food and non-food bottle lines
- Can be integrated into complete filling, labeling and packaging lines
- PET bottles
- Water bottles
- Juice bottles
- Dairy drink bottles
- Milk bottles
- Yogurt drink bottles
- Beverage bottles
- Alcohol bottles, if the container and label format are compatible
- Round bottles
- Bottles of complex geometric shape
- Other containers suitable for heat-shrink sleeve label application
