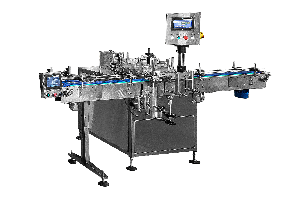

High-Speed Bottle Labeling Machine for PET Bottles
HIGH-SPEED BOTTLE LABELING MACHINE is an automatic labeling machine designed for applying wraparound or segment polypropylene labels to filled and dried PET bottles at high production speed.
The machine is suitable for PET bottles used for drinking water, carbonated beverages, non-carbonated drinks, dairy drinks, juice-containing beverages and other liquid products packed in PET containers.
The key feature of this model is high-speed operation up to 10,000 bottles per hour. The machine applies PP labels from a roll, cuts the label to the required length and fixes it on the bottle surface using adhesive.
After filling, the bottle passes through a drying or blowing section where moisture is removed from the surface. Then the bottle is automatically fed to the labeling machine, separated, positioned and transferred to the labeling zone.
The labeling process includes label unwinding, label cutting, glue application, label transfer by vacuum drum and accurate application to the bottle surface. The machine can work with circular wraparound labels and segment labels depending on the bottle format and label design.
HIGH-SPEED BOTTLE LABELING MACHINE can be integrated into PET bottle filling lines with bottle blowing or drying systems, conveyors, filling equipment, capping machines, date coding, inspection systems and downstream packaging equipment for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Capacity, bottles/hour | Up to 10,000 |
| Container type | Filled and dried PET bottles |
| Label application type | Wraparound or segment label application |
| Label material | Polypropylene film label |
| Label feeding principle | Roll-fed label with cutting before application |
| Label fixation principle | Adhesive / glue application |
| Container shape | Round PET bottles; complex bottle shapes upon agreement |
| Line position | After filling and bottle drying / blowing section |
| Power supply | To be confirmed by specification |
| Installed power, kW | To be confirmed by specification |
| Air pressure, MPa | To be confirmed by specification |
| Compressed air consumption, l/min | To be confirmed by specification |
| Machine length, mm | To be confirmed by specification |
| Machine width, mm | To be confirmed by specification |
| Machine height, mm | To be confirmed by specification |
| Machine weight, kg | To be confirmed by specification |
HIGH-SPEED BOTTLE LABELING MACHINE can be configured for automatic high-speed application of polypropylene labels to PET bottles used in beverage and dairy filling lines.
The machine is suitable for production lines where stable label positioning, accurate glue application and reliable operation at up to 10,000 bottles per hour are required.
Standard accessories:
- Electrical control cabinet
- Bottle infeed conveyor
- Bottle separation and feeding unit
- Vacuum drum for label holding and transfer
- Label cutting mechanism
- Glue application unit
- Bottle positioning unit
- Label presence control system
- Label reel holder and unwinding unit
- Control panel for machine operation and adjustment
Optional equipment:
- Configuration for a specific PET bottle format
- Adaptation for different PP label lengths and label types
- Integration with bottle filling lines
- Integration with bottle blowing or drying equipment
- Adjustment according to required line capacity
- Date coding or batch marking equipment
- Inspection or reject system integration
- Downstream packaging equipment integration
Advantages:
- High-speed labeling up to 10,000 bottles per hour
- Designed for filled and dried PET bottles
- Application of wraparound and segment PP labels
- Accurate circular label application without displacement or wrinkles
- Stable work with long and complex label formats
- Uniform glue application along the label length
- Reliable label fixation on a dry bottle surface
- Suitable for carbonated and non-carbonated beverage lines
- Can be integrated into existing PET bottle filling lines
- PET bottles for drinking water
- PET bottles for carbonated beverages
- PET bottles for non-carbonated beverages
- PET bottles for dairy drinks
- PET bottles for juice-containing beverages
- Filled and dried PET bottles suitable for PP label application
- Round PET bottles
- PET bottles of complex shape, subject to configuration approval
