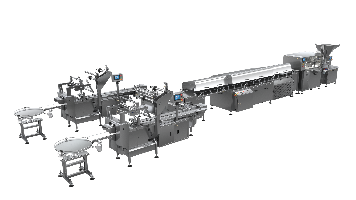

LGS 6000 Glazed Curd Bar Production Line
LGS 6000 is an automatic production line designed for forming, filling, glazing, cooling, decorating and Flow Pack packaging of glazed curd bars and cottage cheese bars.
The line is suitable for producing glazed curd bars of different shapes, with or without filling. Products can be filled with jam, chocolate, condensed milk and other fillings, glazed with chocolate coating and decorated with liquid or dry toppings.
The key feature of LGS 6000 is a complete automated process: curd bar forming, filling, glazing, cooling, optional decoration, automatic placing and individual Flow Pack packaging on LINEPACK FA.
LGS 6000 can produce classic glazed curd bars, filled curd bars, decorated curd bars and combined products such as curd bars placed on a cookie base. The typical product weight range is 40–50 g, depending on the recipe, product shape and line configuration.
The line includes a bar forming machine with string or diaphragm cutting, a filling station, a glazing machine, a cooling tunnel, an automatic placer, a horizontal Flow Pack packaging machine and a receiving table. This configuration allows manufacturers to automate both product forming and final individual packaging.
LGS 6000 can be used for dairy and confectionery production facilities that need stable output, stainless steel execution, accurate glaze heating, reliable glaze feeding and automated product transfer to Flow Pack packaging for factories in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Performance, max, bars/hour | 6,000 |
| Product type | Glazed curd bars / glazed cottage cheese bars |
| Product weight, g | 40–50 ±2 |
| Product length, mm | 50–80 |
| Product width, mm | 25–30 |
| Product height, mm | 20–25 |
| Package type | Flow Pack |
| Packaging machine | LINEPACK FA horizontal Flow Pack machine |
| Power supply | 380 V, 3-Ph, 50 Hz |
| Power consumption, kW | 30 |
| Air pressure, MPa | 0.6 |
| Air consumption, l/min | 100 |
| Line length, mm | 11,500 |
| Line width, mm | 3,290 |
| Line height, mm | 1,400 |
| Line weight, kg | 2,870 |
| Structure material | Stainless steel |
LGS 6000 is configured as a complete production and packaging line for glazed curd bars, including forming, filling, glazing, cooling and Flow Pack wrapping.
The line is suitable for manufacturers that need automated production of glazed curd bars with different recipes, fillings, decorative toppings and individual Flow Pack packaging.
Standard accessories:
- Bar forming machine with string or diaphragm cutting
- Filling station
- Glazing machine
- Cooling tunnel
- Automatic placer, rotary or linear type
- Horizontal Flow Pack packaging machine LINEPACK FA
- Receiving table
- Stainless steel machine structures
- Glaze hopper with hot water jacket
- Auger pump for stable glaze feeding
- Adjustable conveyor belt tensioning and centering device
Optional equipment:
- Decorator for liquid toppings
- Decorator for dry toppings
- Sprinkling device for coconut chips, chocolate crumbs or other dry decoration
- Device for placing curd bars onto a cookie base
- Additional configuration options according to product recipe, bar shape and production task
Advantages:
- Complete automated line for glazed curd bar production
- Capacity up to 6,000 bars per hour
- Production of glazed curd bars with or without filling
- Possibility to produce decorated products and curd bars on a cookie base
- Automated forming, filling, glazing, cooling and Flow Pack packaging
- Stainless steel execution for dairy and confectionery production
- Product loading without interrupting the production process
- Accurate glaze heating due to hot water jacket
- Auger pump for stable and reliable glaze feeding
- Convenient maintenance, cleaning and sanitary processing
- Glazed curd bars
- Glazed cottage cheese bars
- Curd bars with filling
- Curd bars without filling
- Curd bars with jam filling
- Curd bars with chocolate filling
- Curd bars with condensed milk filling
- Decorated glazed curd bars
- Curd bars with coconut chips or chocolate crumbs
- Curd bars on a cookie base
- Other dairy-confectionery bars suitable for forming, glazing and Flow Pack packaging
