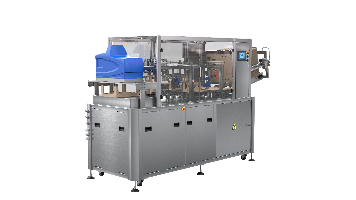

Automatic Tray Former for Corrugated Trays
Automatic Tray Former is a machine designed for automatic forming of corrugated cardboard trays and cell trays from flat cardboard blanks.
The machine is suitable for plastic cups, buckets, containers and other types of rigid packaging that require placement into a cardboard tray for group, transport or secondary packaging.
Automatic Tray Former forms trays from corrugated blanks and can be used both in automatic production lines and in applications where products are loaded into trays manually.
The machine takes a blank from the magazine, feeds it to the forming area, applies glue, forms the tray structure and transfers the finished tray to the outlet conveyor.
The equipment supports tray formats such as 2×3, 2×4 and 3×3. Quick changeover makes it possible to adapt the machine to different tray designs, low and high tray formats and different product group configurations.
Automatic Tray Former can be integrated into SIGITASPAK group packaging and end-of-line systems for dairy, food, beverage, household, cosmetic and non-food manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematic speed, max | 20 trays/min |
| Tray type | Corrugated cardboard tray / cell tray |
| Tray format | 2×3; 2×4; 3×3 |
| Blank magazine capacity | 500 pcs |
| Power supply | 380 V, 3-phase, 50 Hz |
| Installed power | 4 kW |
| Air pressure | 0.5–0.6 MPa |
| Compressed air consumption | 40 l/min |
| Machine length, max | 3100 mm |
| Machine width, max | 870 mm |
| Machine height, max | 2200 mm |
| Machine weight, max | 600 kg |
Advantages
- Automatic forming of corrugated cardboard trays from flat blanks
- Suitable for trays and cell trays
- Output up to 20 trays/min
- Supports tray formats 2×3, 2×4 and 3×3
- Suitable for low and high tray formats
- Can work with different tray constructions
- Large blank magazine capacity up to 500 pcs
- Compact machine design
- Quick changeover for different tray formats
- Can be integrated into automatic production lines
- Can also be used when products are loaded into trays manually
Standard accessories
- Blank magazine
- Glue delivery station
- Blank feeding mechanisms
- Tray forming mechanisms
- Glue application system
- Pressers
- Outlet conveyor
Optional equipment
- Replaceable units for tray format 2×3
- Replaceable units for tray format 2×4
- Replaceable units for tray format 3×4
- Changeover set for tray format 3×3
- Integration with product loading systems
- Integration with conveyors and group packaging lines
- Other options on request
- Corrugated cardboard blanks
- Flat tray blanks
- Corrugated trays
- Cell trays
- Plastic cups
- Plastic buckets
- Plastic containers
- Dairy product containers
- Food containers
- Rigid packaging formats requiring tray packaging
- Product groups in tray format 2×3
- Product groups in tray format 2×4
- Product groups in tray format 3×3
- Product groups in tray format 3×4
- Other products suitable for corrugated tray packaging
