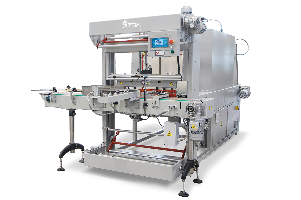

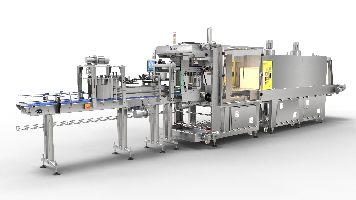

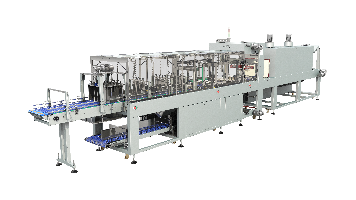

TURBOPACK 25 Shrink Wrapping Line with Cardboard Divider
Package type
TURBOPACK 25 with Cardboard Divider is a high-output shrink wrapping line designed for group packaging of products in heat-shrinkable film with a cardboard divider between product rows.
The line is suitable for bottles, cans, Pure Pak and Gable Top cartons, rectangular products and other single items that need to be formed into group blocks for transport, warehouse handling and secondary packaging.
The key feature of TURBOPACK 25 with Cardboard Divider is the installation of a cardboard separator between product rows. This helps create a more stable group package for products that require additional separation or protection inside the shrink-wrapped block.
Each technological stage is performed by a separate automatic module: block forming, cardboard divider placement, sleeve wrapping and heat shrinking. This modular structure allows the line to be configured according to the required product type, block size, packaging format and output.
The line can support different packaging concepts: shrink film only, shrink film with corrugated cardboard pad, shrink film with tray, or shrink film with cardboard divider depending on the production task.
TURBOPACK 25 with Cardboard Divider can be integrated into dairy, beverage, food, household and non-food production lines for manufacturers in the UAE, GCC countries, the Middle East, Africa and other international markets.
| Kinematic speed, max | 25 blocks/min |
| Product type | Bottles, cans, Pure Pak cartons and similar single products |
| Block format | Up to 3×5 |
| Packaging type | Shrink film |
| Cardboard element | Cardboard divider between product rows |
| Machine type | Automatic shrink wrapping line |
| Block forming | Separate automatic block forming module |
| Film wrapping | Sleeve wrapping machine |
| Shrink tunnel | Three-section shrink tunnel module |
| Line configuration | Configured according to product type, block size, packaging format and required output |
Advantages
- High-output shrink wrapping line for group packaging
- Designed for products formed into blocks up to 3×5
- Cardboard divider placement between product rows
- Suitable for bottles, cans, Pure Pak cartons and similar products
- Output up to 25 blocks/min
- Separate automatic modules for block forming, film wrapping and heat shrinking
- Can be configured with shrink film only, cardboard pad, tray or divider
- Suitable for transport and secondary packaging
- Flexible line configuration according to product and package format
- Can be integrated into automatic production and packaging lines
Standard accessories
- Block forming unit
- Cardboard divider placement unit
- Sleeve wrapping machine
- Three-section shrink tunnel module
- Film wrapping and sealing system
- Operator control panel
Optional equipment
- Cardboard pad handling unit
- Tray forming or tray handling unit
- Outfeed conveyor after shrink wrapping
- Roller table
- Additional transport systems
- Line configuration according to product type, block size and required output
- Other options on request
- Bottles
- Cans
- Pure Pak cartons
- Gable Top cartons
- Single products formed into group blocks
- Product blocks up to 3×5
- Group packages with cardboard divider
- Group packages with cardboard pad
- Group packages with tray
- Transport shrink packs
- Other products suitable for high-output shrink film group packaging
